Area of Convergence: How to Pinpoint Blood Origin

You walk into a room. It’s messy. There are red splatters on the wall, pools on the floor, and droplets hanging from the ceiling. Your first instinct might be to look at the biggest stain. But if you want to know where the violence actually happened, you need to ignore the mess and focus on the geometry. This is the job of Area of Convergence, a fundamental concept in bloodstain pattern analysis (BPA) that determines the two-dimensional location where blood sources intersected. It’s not magic. It’s math. And if you get it wrong, your entire reconstruction of the event falls apart.

The Core Concept: What Is Area of Convergence?

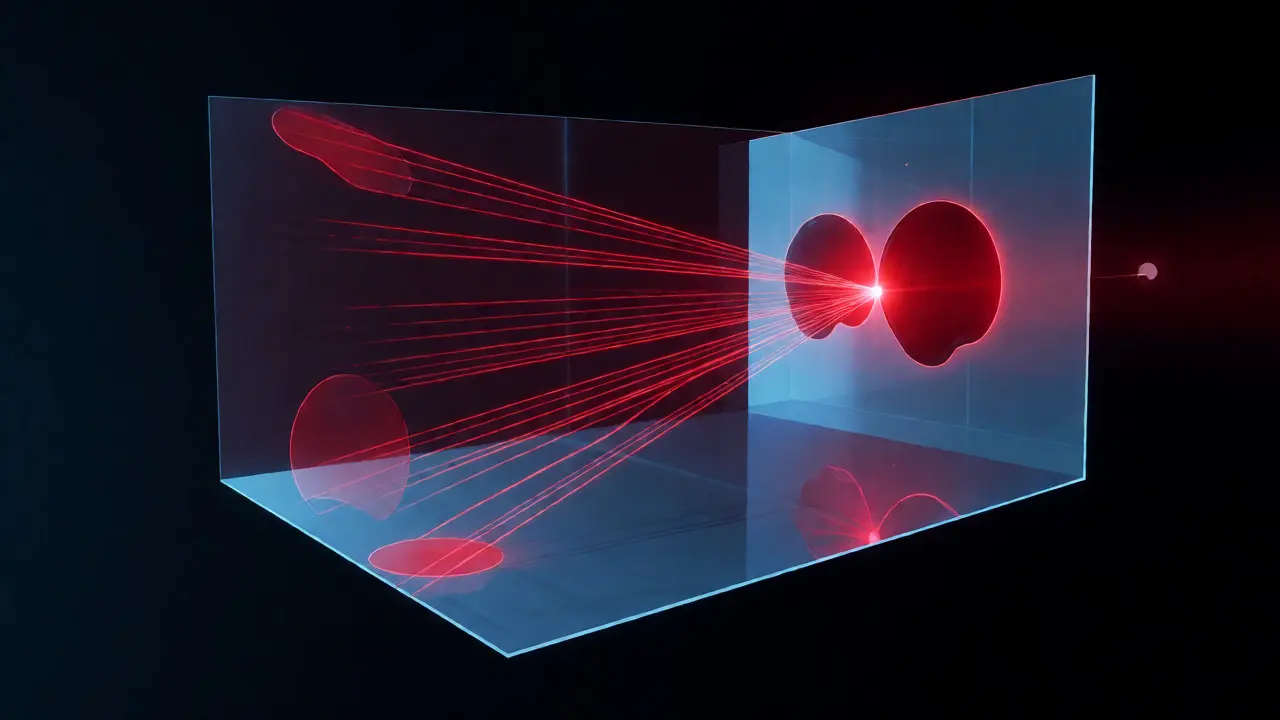

Think of it like this: if someone throws a handful of marbles across a flat floor, they all start from one spot. In forensics, when a blunt force impact hits a wet surface-like a face or a skull-the blood flies out in a cone shape. When that blood lands on a wall or floor, it creates stains. If you draw a straight line through the long axis of every single stain back toward the source, those lines will eventually meet at a specific point on the surface. That intersection is the Area of Convergence (AOC).

This gives you the X and Y coordinates on a plane. It tells you where the victim was standing or sitting relative to the wall. It does not tell you how high off the ground the injury occurred. For that, you need the Z-axis, which requires calculating the Point of Origin (POO). But you can’t find the POO without first nailing down the AOC. They work together, but they are distinct steps in the process.

Why Directionality Matters More Than Size

Beginners often obsess over the size of the blood drop. Does a bigger drop mean more force? Sometimes. But for finding the origin, directionality is king. You need to know which way the blood was traveling when it hit the surface. This is determined by the shape of the stain.

A perfect circle means the blood hit perpendicular to the surface (90 degrees). That’s rare. Most drops hit at an angle. When they do, they stretch out into an ellipse. The key feature here is the "tail" or "satellite." As the drop travels, air resistance pushes the trailing edge backward. So, the tail points back toward the source. If you see a teardrop shape with the wide end pointing left and the thin tail pointing right, the blood came from the right.

Step-by-Step: Calculating the Area of Convergence

So, how do you actually do this in the field? You don’t just guess. You follow a strict protocol to ensure your results hold up in court.

1. Select Quality Stains: Not all stains are created equal. Ignore smears, drips, or stains that have merged with others. Look for isolated, well-defined elliptical stains. These are your best evidence. Aim for at least three to five stains that are clearly directional.
2. Determine Directionality: Examine each selected stain. Identify the tail or satellite droplet. Draw a mental line from the center of the main body through the tail. This line represents the path of travel.

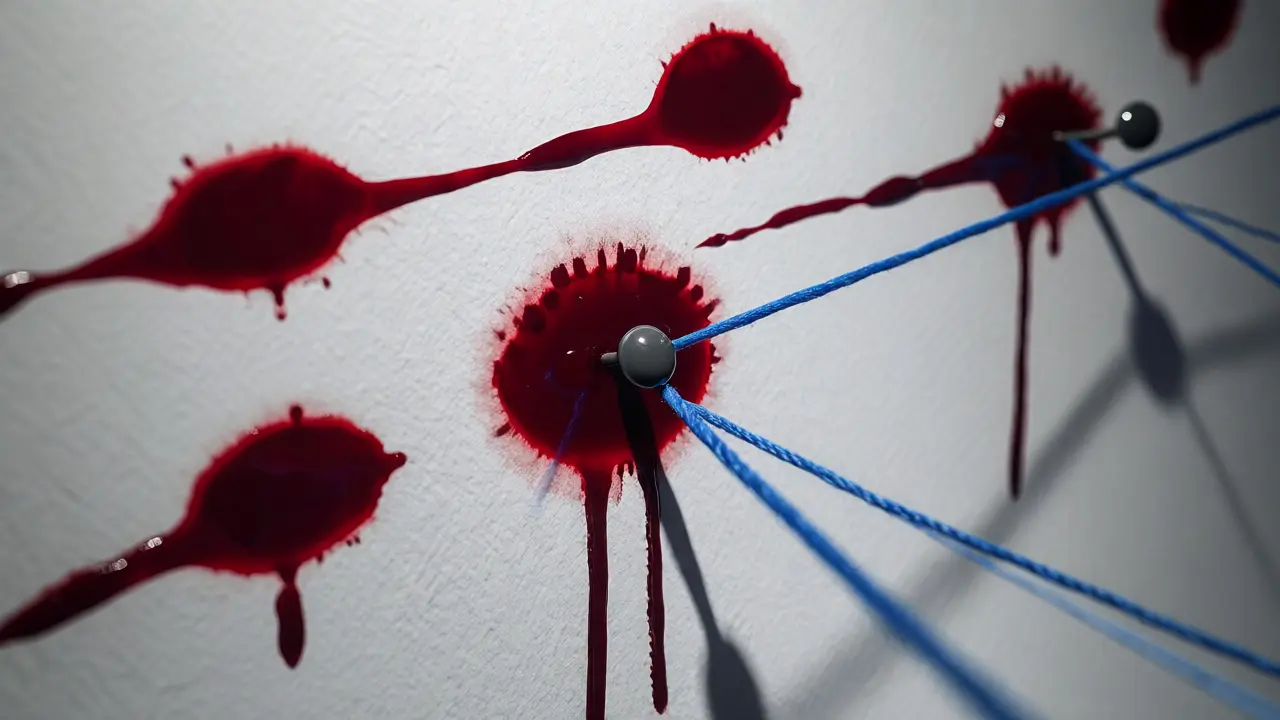

3. Use Stringing (The Physical Method): This is the classic technique. Insert a pin or needle into the center of the stain. Tie a piece of string to it. Pull the string taut along the axis of the stain, pointing away from the tail (toward the source). Repeat this for multiple stains. Where the strings cross above the surface, you’ve found the approximate area of convergence.
4. Use Digital Triangulation (The Modern Method): Today, many analysts use software like BackTrack or HemoSpat. You photograph the scene, mark the angles of individual stains, and the software calculates the intersection. This reduces human error and allows for 3D modeling.
5. Define the Area: Rarely do lines cross at a single mathematical point. They form a triangle or a small cluster. This cluster is your Area of Convergence. Document its dimensions. Was it 2 inches wide? 6 inches? This uncertainty range matters.

Common Pitfalls That Ruin Analysis

I’ve seen plenty of cases where the analysis failed because of simple mistakes. Here are the big ones.

• Confusing Secondary Patterns: If a person moves after being hit, they create secondary spatter. These new drops fall from a different height and angle. If you include them in your initial convergence calculation, you’ll skew the result. Always separate primary impact spatter from subsequent events.
• Ignoring Surface Curvature: Walls aren’t always flat. Ceilings curve. Floors have rugs. If you assume a flat plane but the surface is curved, your string lines won’t represent true 3D space accurately. Adjust your measurements for the actual surface geometry.
• Overlooking Void Patterns: Did something block the blood? Maybe the victim’s arm, or a piece of furniture. These voids can indicate position, but they don’t help with convergence directly. Don’t try to force a convergence line through a void unless you understand what caused it.
• Assuming All Drops Came From One Source: In complex scenes, there might be multiple impacts. Two separate fights, for example. If you mix stains from Impact A and Impact B, your convergence point will land somewhere between them, which is useless. Group your stains by similar characteristics first.

From Convergence to Origin: The Next Step

Finding the Area of Convergence is only half the battle. Once you have the X and Y coordinates, you need the height (Z-axis). This is where trigonometry comes in. You measure the angle of impact for each stain. This is done using the formula: $\text{Angle} = \arcsin(\frac{\text{Width}}{\text{Length}})$. Once you have the angle and the distance from the AOC to the stain, you can calculate the height using tangent functions. Combine this with the known height of the weapon or the victim’s stature, and you can reconstruct the scene. Did the attacker stand over the victim? Were they seated? The Point of Origin answers these questions.

For instance, if the AOC is low near the floor, but the calculated POO is at 4 feet, the victim was likely kneeling or crouching. If the POO is at 5’6", they were probably standing. This distinction changes the narrative entirely. Was it a defensive wound while falling? Or an attack from behind while standing?

Real-World Application: A Case Study

Imagine a domestic dispute in a hallway. A suspect claims he swung his fist once. The victim says she was punched repeatedly. The police find spatter on the wallpaper.

An analyst examines ten clear stains. Nine of them converge at a point 4 feet above the floor, centered in the hallway. One stain converges slightly lower, at 3 feet. Why the discrepancy? Further inspection reveals the lower stain has a different drying pattern and contains mixed DNA. It turns out, the victim fell during the altercation, hitting her head on the baseboard. That lower stain wasn’t from the punch-it was from the fall.

By isolating the nine primary stains, the analyst confirmed the AOC matched the standing height of the suspect. The outlier was discarded. Without that rigorous separation, the conclusion would have been muddied. This is why expertise matters. It’s not just about drawing lines; it’s about understanding the physics of the event.

Tools of the Trade

You don’t need fancy gear to start, but having the right tools helps. Standard kits include protractors, rulers, and string. But modern labs rely on digital scanners and photogrammetry apps. These allow you to map the scene with millimeter precision. Some advanced systems even integrate with LiDAR to create a full 3D model of the crime scene before you ever touch a stain.

However, technology doesn’t replace critical thinking. A computer can calculate the intersection, but it can’t tell you if the stain is real or a drip from a leaky pipe. Human judgment remains the final filter.
